Tutorial

Conceptual summary

There are three main components:

  1. Transforms. A transform allows you to get from an input space to a target space through affine or nonlinear transforms. It allows you to pass points or images from the input space to the target space. For instance, a rotation matrix with a shift is an example of a Transform. There are many included by default, but you can also create your own. Transforms can be composed and edited. Transforms are the foundation of this library.

  2. GUIs to create transforms. It can be difficult to find the correct parameters for a transform, so multiple GUIs can assist you. The simplest one (alignment_gui()) allows you to pass two volumes and a Transform, and then interactively use that Transform to align the volumes. A more advanced one (align_interactive()) allows you to align in steps by composing different transforms together.

  3. Graphs to manage networks of transforms. In many practical applications, you may need to align many different images to the same target image, or other complex relationships between images. It can quickly become unwieldly to organise all of these transforms and their corresponding images. Graphs make it easy to keep everything organised. Several convenience methods are included for aligning within a graph.

CASTalign always uses (z,y,x) coordinate format. Likewise, images are expected to have the z position as its first coordinate, y as its second, and x as its third. The point (5,6,7) on an image im will be at the voxel im[5,6,7]. Note that when displaying images, as is the convention in Python, the origin is shown at the top left of the screen, and positive y values indicate closer to the bottom of the screen. This format is compatible with nearly all other Python image libraries, and so usually you should not need to think about this.

CASTalign also uses an extension on numpy ndarrays to specify a coordinate system origin. These objects are called “ndarray_shifted”. If you do not care about the shift, you can use them like a normal numpy array.

Transforms

A Transform takes you from one coordinate space (the input space) to another coordinate space (the target space). The input is the “movable” image and the target is the “base”. For instance, suppose you have a volumetric image , and a second volumetric image rescaled to have uniform voxel size of 1um. A Transform could map points or images between the raw and rescaled coordinate spaces.

There are many types of transforms included by default. These fall into two main categories:

  • Parameter-based Transforms use parametric values to define the Transform. For instance, TranslateParametric is a parameter-based transform that receives an explicit z, y, and x shift.

  • Point-based Transforms use a point cloud to define the Transform. For point-based transforms, you must define the starting and ending positions of several keypoints. For instance, a Translate will find the z, y, and x shifts that best fit the keypoints. You can choose these keypoints from a gui. Some point-based transforms may also include parameters, such as a smoothness hyperparameter or a normal vector along which the Transform should occur.

Transforms are invertible. You can use the Transform.invert() function to perform the inversion. This occurs analytically for most transforms.

Transforms may be specified or unspecified. A specified Transform includes values for each of its parameters, and matching point clouds if it is a Point-based Transform. This is represented by an instance of the class. An unspecified Transform does not yet have chosen parameters or points, and is represented by the uninsantiated class. For instance, TranslateParametric(x=3,y=0,z=1) is specified, but TranslateParametric is unspecified. You cannot apply an unspecified Transform to points or an image, because you have not yet defined what the transform should do. Unspecified transforms can be made specified through the GUI, or by calling them with the appropriate parameters.

Transforms are composable. If you have two transforms, you can add them together to get their composition. For instance, the Transform that first applies Transform A and then applied Transform B can be written in Python as A + B. Two specified transforms may be composed, and their composition gives another specified Transform. A specified and unspecified Transform may also be composed, but their composition gives an unspecified transform. Currently, the unspecified Transform must be the final term in the sum. Two unspecified transforms cannot be composed.

Transforms are lossless. If you compose RescaleParametric(x=.5, y=.5, z=.5) + RescaleParametric(x=2, y=2, z=2) and apply it to an image, the result will be identical to your starting image, without the artifacts from resizing the image. More generally, under the hood, a long chain of composed transforms will all be applied at once.

All the information needed to save a Transform comes from its text representation. So, you can simply call “print” and then copy and paste it somewhere, or save the text of the Transform to a text file. The string representation is executable Python code that you can run to recreate your Transform. Nevertheless, there is also a Transform.save() function which does this for you.

List of Transforms

Different transforms are useful for different types of data. For different geometries of input (movable) images, different transforms may be advantageous. Input images can be approximately one of three types:

  • Cake: Approximately equally thick in all three dimensions. For example, a three-dimensional z-stack.

  • Pancake: Wide in two dimension, and somewhat thin (but not too thin) in the third dimension. For example, a histology section may be 10 mm in length and width, but only 0.1 mm in depth.

  • Rice paper: A two-dimensional image, where the third dimension contains no useful information or does not exist at all (e.g. only one voxel thick). For example, a two-dimensional imaging plane.

transforms may be affine (linear) or non-linear. Affine transforms, under the hood, use the equation points @ self.matrix + self.shift to transform points.

While creating your own Transform is easy, the following transforms are included by default:

See also the Transforms Gallery for visual examples and parameter/default summaries.

Name

Cake

Pancake

Rice paper

Point-based

Affine

Identity

X

X

X

X

Translate

X

X

X

X

X

TranslateParametric

X

X

X

X

Rigid

X

X

X

X

X

RigidParametric

X

X

X

X

Affine

X

†

X

X

AffineParametric

X

†

X

LaminarAffine

X

X

X

X

FlipParametric

X

X

X

X

MatrixParametric

X

X

X

X

RescaleParametric

X

X

X

X

Triangulation

X

X

LaminarTriangulation

X

‡

X

† It is possible to do a successful Affine with a pancake geometry, but make sure to match at least one point at the top and bottom near each of the four corners. Otherwise, shear effects will dominate the transform.

‡ When using LaminarTriangulation with a movable image that has a rice paper geometry, it is generally more effective to set the rice paper image as the target image when performing the alignment.

Using a Transform

There are two important methods:

  • Transform.transform(points) will apply the transform to either a single point, or to a list of points. If points is a matrix, there should be three columns, corresponding to z, y, and x.

  • Transform.transform_image(im) will apply the transform to an image. There are more arguments controlling how the image is generated, see the function documentation for more information. The transformed image this function returns will be an “ndarray_shifted”, so if you plot it outside of the Transform library, it may not appear to be aligned unless you shift it by the position of the origin. See the function documentation for more information.

There is also a shorthand way to apply transforms. You can call a transform like a function: if the input looks like points, it uses transform(), and otherwise it uses transform_image().

p_out = t([10, 20, 30])        # Same as t.transform([10, 20, 30])
img_out = t(img1)              # Same as t.transform_image(img1)

Examples

As a simple example, let’s consider TranslateParametric. Here we show how to transform points, as well as perform a composition of two transforms.

import numpy as np
import castalign as ca

# Example 1
t1 = ca.TranslateParametric(x=3, y=4, z=5)
assert np.all(t1.transform([10, 20, 30]) == [15, 24, 33])
assert np.all(t1.transform([[10, 20, 30], [40, 50, 60]]) == [[15, 24, 33], [45, 54, 63]])

# Example 2
t2 = ca.TranslateParametric(z=1, y=1, x=1)
t = t1 + t2
assert np.all(t.transform([10, 20, 30]) == [16, 25, 34])

# Example 3
t = t1 + ca.Identity()
assert np.all(t.transform([10, 20, 30]) == t1.transform([10, 20, 30]))

To transform an image, e.g., applying a rotation and a translation:

# Load example data
from skimage.data import cells3d
im = cells3d()[:,1]

# Define the Transform and apply it to the image
import castalign as ca
t = ca.RigidParametric(zrotate=30, x=60)
im_rotate = t.transform_image(im)

# Visualise the result
import napari
v = napari.Viewer()
v.add_image(im, blending="additive", colormap="Green")
v.add_image(im_rotate, translate=im_rotate.origin, blending="additive", colormap="Red")

We will show examples of point-based transforms once we explore the GUI.

GUI

This library contains a GUI based on Napari that can be used to fit transforms by hand, seeing the changes interactively as the Transform is edited. There are two primary interactive functionalities of the GUI:

There are two ways to access the GUI. The first, using the function alignment_gui(), allows you to create or edit a single Transform. If you pass it an unspecified Transform, it will create a new specified Transform. If you pass it a specified transform, it will allow you to edit it.

The second function is align_interactive(), which allows you to create chains of composed transforms. For example, it is often useful to perform a manual translation or rotation before selecting keypoints for a point-based transform, because it makes it easier to find the matching keypoints in both images. Usually, this is the one you want to use.

Creating and editing transforms with the GUI

Let’s use the align_interactive() GUI, designed for selecting, editing, and chaining together transforms. Let’s see how we align two volumetric images.

# First create some dummy data for us to align
import skimage
fixed = skimage.data.cells3d()[:, 0]
movable = skimage.transform.resize(fixed[3:,5:,:-2], (60, 240, 250))

# Now import CASTalign.  We need to iImport the GUI separately,
# since CASTalign can be used on computers without GUIs.
import castalign as ca
import castalign.gui

t = ca.gui.align_interactive(movable, fixed)

print(t)

The GUI will look like this:

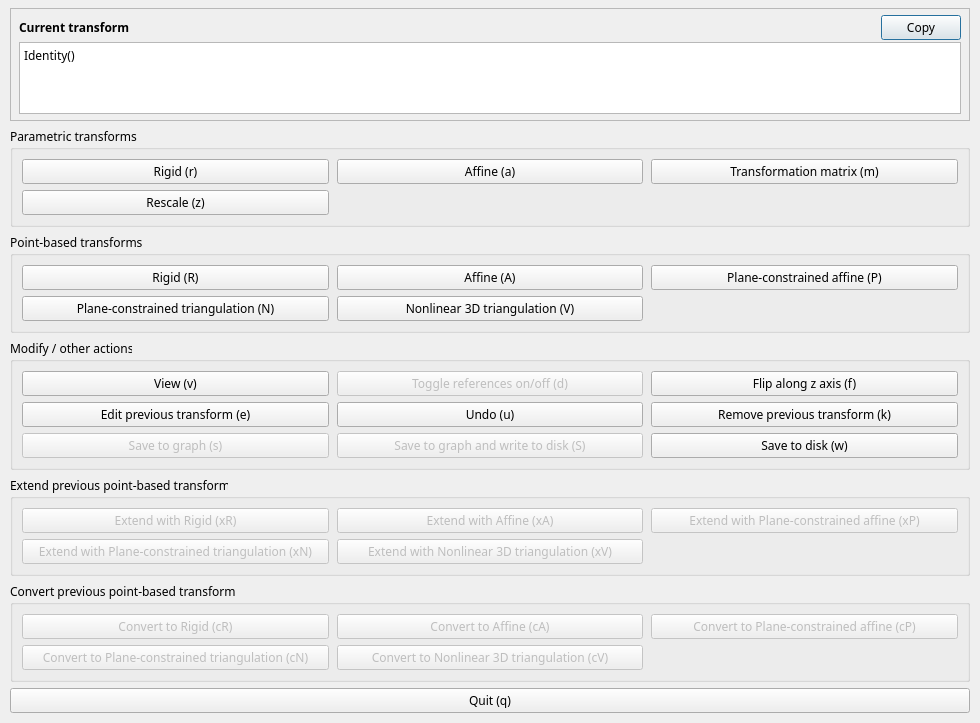

align_interactive() GUI

On the top row, we can see see the current transform, which is just Identity() for now (i.e., no transform). The next section shows parametric transforms, followed by point-based transforms, other tools, and then two options to modify poinst-based transforms.

Parametric transforms

Let’s start with a parametric transform. “Rigid” (RigidParametric) is usually a good place to start. Click the “Rigid” button under the “Parametric Transforms” section.

We see a GUI come up that looks like this:

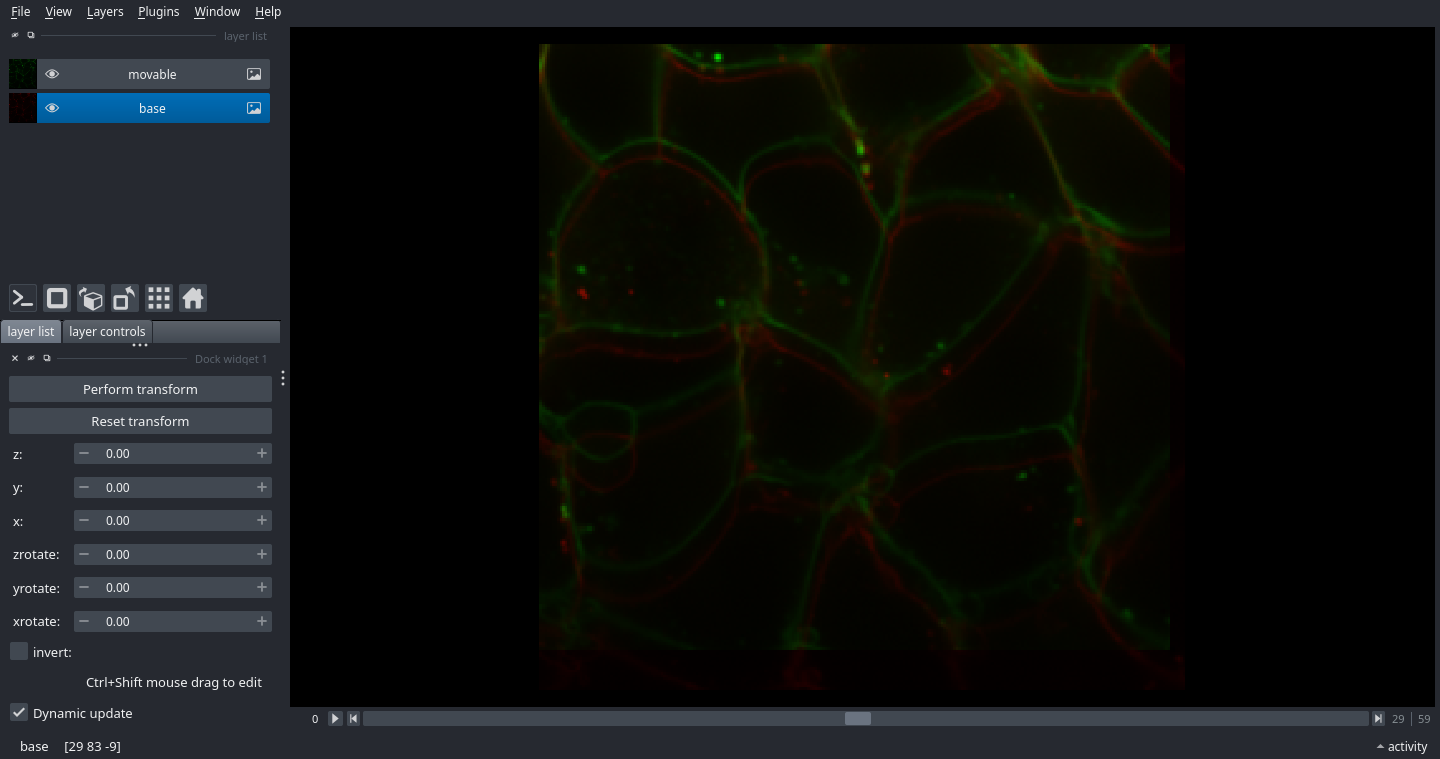

alignment_gui() parametric GUI

In the centre, we see two images that are not quite aligned with each other. On the bottom left, we see several options for parameters that can specify a rigid transformation.

First, let’s try to align these by eye. Hold Ctrl+Shift, and then click and drag the image in the viewport while continuing to hold down Ctrl+Shift. You should be able to drag and drop this image.

Now, look down at the bottom left side of the screen. The textbox sliders for x, y, and z should have changed. You can try changing these sliders and see that the position of the green image in the viewport moves, while the red image stays the same.

You will see it is hard to get them to be exactly the same. Move them to be somewhat close, and then get out of the interface by clicking the X button in the corner.

Point-based transforms

The GUI window to select a transform should appear again. This time, select “Rigid” (Rigid) under the “Point-based Transforms” section.

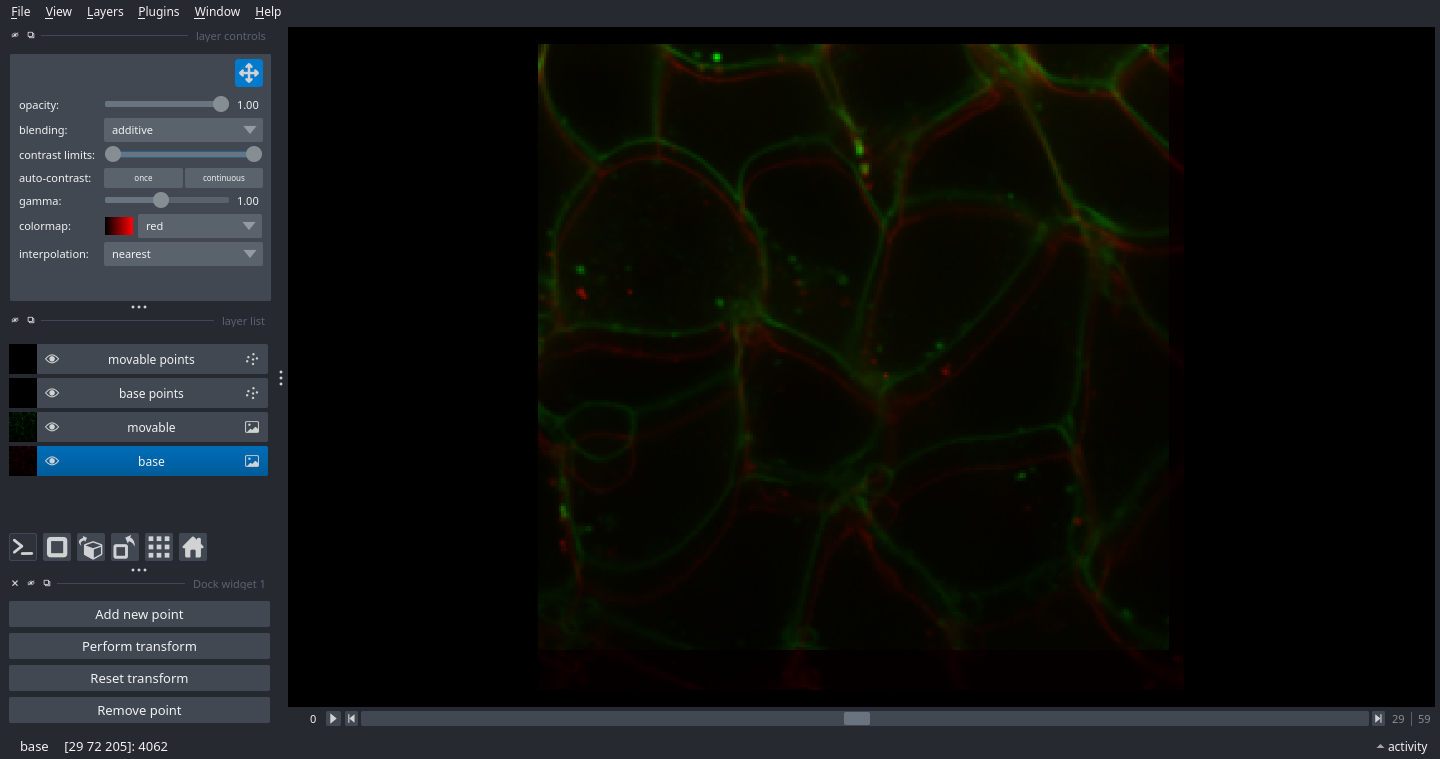

alignment_gui() points GUI

You will see a window that looks similar to the one we saw earlier, except this time, there will be buttons on the bottom left instead of text box sliders. This is the interface for adding corresponding points between the two images.

To add a new point, click on “Add new point”. The movable image with temporarily become faded out, and you can choose a point in the base image. Left clicking will select the point underneath the cursor, and right clicking will find the nearest intensity peak; in other words, if you click near a bright spot, it will find the centre of the bright spot. After clicking, the background image will fade out and you can select a point on the movable image using the same mechanism. To remove a point, click “Remove point” and then click nearby the point you would like to remove; both points in the pair will be removed.

Once you have added a few points this way, you can click the “Perform transform” button. This will fit the transform and readjust the display. If you click “Reset transform”, it will undo the transform, but keep the selected points.

When you have finished adding points, and are satisfied with the transform, close out of the viewer by clicking the X in the corner. The current active transform will be added to the transform chain. Note that the currently displayed transform is the one that is added; if you have clicked reset transform, no transform will be saved, or have not clicked “Perform transform” since adding points, the new points added since clicking it will not be saved.

Each additional transform added through the interface is added to the chain.

Changing the last transform in the chain

Notice that the Rigid transform does not provide a good fit to the images. (This is by design, since we rescaled the image when constructing it.) If you notice that the transform you selected points for is inapproriate, you can convert the points from the previous transform into a different transform. In the GUI, notice that the buttons towards the bottom, which were previously greyed out, are now clickable. This is because your most recent transform was point-based.

Click the “Convert to Affine” button at the bottom of the transform selection dialog. A viewer will come up, which will be just like the point-based viewer and will have all of the same points selected, but the transform will be an Affine transform instead of a Rigid transform. If it looks okay, you can close out to accept, otherwise, you can add more points.

The “Extend” buttons near the “Convert” buttons work similarly, except instead of replacing the old transform, they use the errors of the previous point-based transform as a starting point for a new transform. The primary use of this is to use a point-based transform immediately followed by a non-linear transform.

Saving transforms

There are three ways that the GUI makes transform chains available. The first is by returning the transform as the return value of the “align_interactive()” function. In this way, if can be incorporated into Python scripts.

Second, the transform can be saved directly by using the “Save transform” button. This will open a dialog box to save (equivalent to Transform.save()). Then, it can be loaded with Transform.load():

t = ca.Transform.load("/path/to/transform.tf")

The third is by saving to a graph, which we will discuss in the next section….

Graphs

With most real-world data, many transforms are needed, and all of these transforms relate to each other. It quickly becomes difficult to keep track of which transform maps which space to which other space. A Graph is how CASTalign organises this.

A Graph stores named spaces as nodes, and transforms between spaces as edges. You can also attach images directly to nodes. This is useful for GUI-driven workflows, because you can align by node name instead of repeatedly passing raw arrays.

To create a node, use g.add_node(name, image=…). To define a transform between nodes, use g.add_edge(node1, node2, tform). As elsewhere in CASTalign, this follows a “from -> to” convention: tform maps from node1 into node2.

Graphs also support shorthand indexing, which is equivalent to the explicit methods above:

g["img1"] = img1                # Same as g.add_node("img1", image=img1)
g["img1":"img2"] = t            # Same as g.add_edge("img1", "img2", t)

img1_loaded = g["img1"]         # Same as g.get_image("img1")
t_img12 = g["img1":"img2"]      # Same as g.get_transform("img1", "img2")

"img1" in g                     # Node existence check
("img1", "img2") in g           # Edge existence check
del g["img1":"img2"]            # Same as g.remove_edge("img1", "img2")

Example workflow with three images

Suppose from the previous section you already have fixed, movable, and a transform t returned by align_interactive(movable, fixed).

img3 = img2[:,10:,:-15] # Simple translation of img2

g = ca.Graph()
g["img1"] = movable
g["img2"] = fixed
g["img3"] = img3

# Existing alignment from earlier:
g["img1":"img2"] = t

Now align img2 to img3 in the interactive GUI with align_interactive():

t_img23 = castalign.gui.align_interactive("img2", "img3", graph=g)

# In the GUI, click "Save to graph" (or "Save to graph and write to disk")
# to store this edge directly in the graph.

If you close the GUI without saving, you can still add that edge manually:

g["img2":"img3"] = t_img23

Getting transforms across indirect paths

There is no direct img1 -> img3 alignment in this example, but Graph will compose the path img1 -> img2 -> img3 automatically:

t_img13 = g["img1":"img3"]
img1 = g["img1"]
img1_like_img3 = t_img13(img1, output_size=img3.shape)

In this case, there is only one path, but in the more general case, CASTalign will find the shortest path between the two nodes and compose the necessary transforms to map from one space to the other (using g.get_transform(…) under the hood).

Viewing all images in one coordinate system

GraphViewer lets you display graph images in a shared space. Here, everything is shown in img1 coordinates:

v = castalign.gui.GraphViewer(graph=g, space="img1")
v.add_image("img1", name="img1 (base)")
v.add_image("img2", name="img2 -> img1", blending="additive", opacity=0.6)
v.add_image("img3", name="img3 -> img1", blending="additive", opacity=0.6)

To inspect graph structure itself, run g.visualise().

Shifted NDArrays

Normally you should not encounter ndarray_shifted objects. This is an internal data storage which adds a origin offset to an NDArray. This allows efficient representation and modification of images which undergoes translation relative to another image.

In day-to-day use, you can treat this like a normal numpy array most of the time.

Practical tips:
